Cylinder Aluminium Single Acting

Cylinder Aluminium Single Acting

Light weight and easy to transport. High strength and corrosion resistant aluminiumm material which can be used in extreme conditions. Single acting spring return.

Available from 20 to 100 tonne capacity.

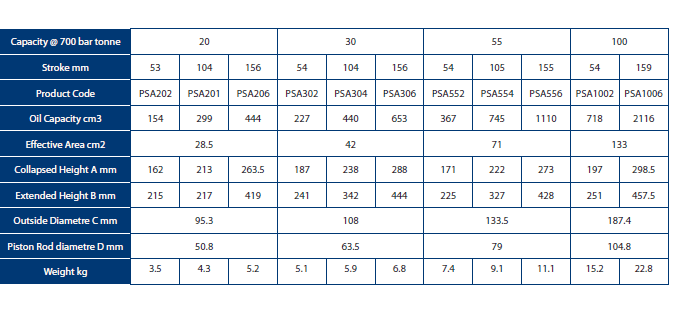

Part Number Description
1001368 Cylinder, Aluminium 20T 53mm
1001369 Cylinder, Aluminium 20T 104mm
1001370 Cylinder, Aluminium 20T 156mm
1001371 Cylinder, Aluminium 30T 54mm
1001372 Cylinder, Aluminium 30T 104mm
1001373 Cylinder, Aluminium 30T 156mm
1001374 Cylinder,Aluminium 50T 54mm
1001375 Cylinder, Aluminium 50T 105mm
1001376 Cylinder, Aluminium 50T 155mm

Features:

  • Complies to ASME B-30.1 High Strength alloy steel for safety and durability.
  • Inside Cylinder treated to enhance durability.
  • Collar threads, plunger threads and base mounting holes enable easy fixture.
  • Heavy Duty plunger spring return.
  • Hig quality 3/8-18NPT coupling.
  • Baked enamel finishfor increased corrosion resistance.
