Cylinder, Double Acting

Cylinder, Double Acting

High strength alloy steel. Double acting operation for fast retraction and built in safety valve prevents over pressurisation.

Available from 30 to 150 Tonne capacity.

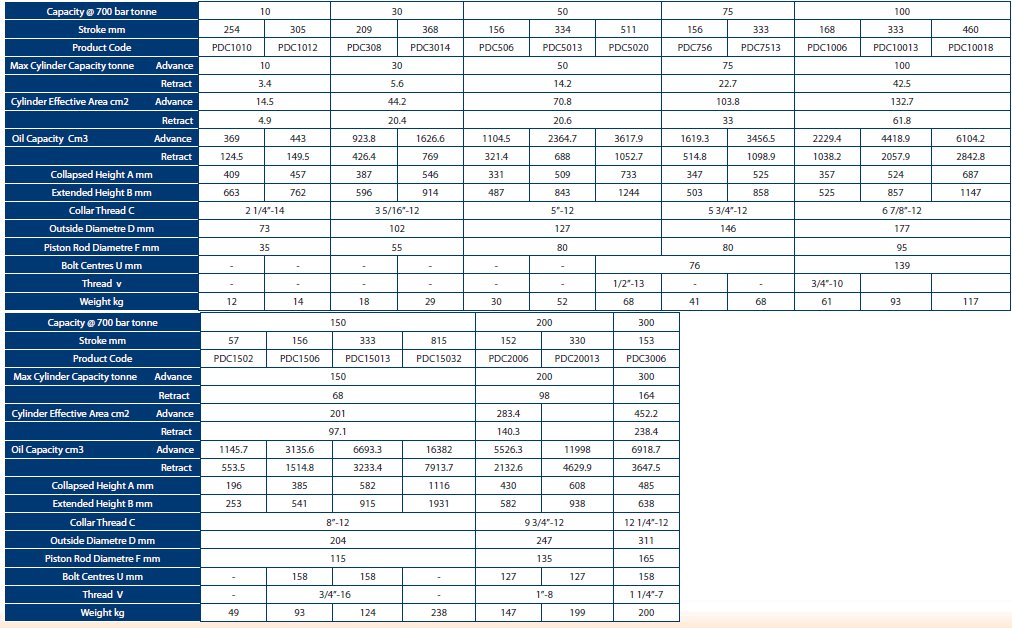

Part Number Description
1001238 Cylinder, Double Acting 10T 254mm
1001239 Cylinder, Double Acting 10T 305mm
1001240 Cylinder, Double Acting 30T 210mm
1001241 Cylinder, Double Acting 30T 368mm
1001242 Cylinder, Double Acting 50T 156mm
1001243 Cylinder, Double Acting 50T 334mm
1001244 Cylinder, Double Acting 50T 511mm
1001245 Cylinder, Double Acting 75T 156mm
1001246 Cylinder, Double Acting 75T 334mm
1001247 Cylinder, Double Acting 100T 168mm
1001248 Cylinder, Double Acting 100T 334mm
1001249 Cylinder, Double Acting 100T 461mm
1001250 Cylinder, Double Acting 150T 57mm
1001251 Cylinder, Double Acting 150T 156mm
1001252 Cylinder, Double Acting 150T 334mm
1001253 Cylinder, Double Acting 150T 816mm
1001254 Cylinder, Double Acting 200T 152mm
1001255 Cylinder, Double Acting 200T 330mm

Features:

  • Complies to ASME B-30.1 High Strength alloy steel for safety and durability.
  • Double acting operation for fast retraction.
  • Built in safety valves prevents over-pressurisation
  • High quality 3/8-18NPT coupling.
  • Collar threads, plunger threads for easy fixture
  • Baked enamel finish for corrosion resistance.
