Cylinder Lock Nut ,Single Acting

Cylinder Lock Nut ,Single Acting

Threaded lock nut for mechanical load holding. High flow 3/8-18NPT quick coupler. Overflow port function a a stroke limiter.

Available from 50 - 1000 tonne capacity

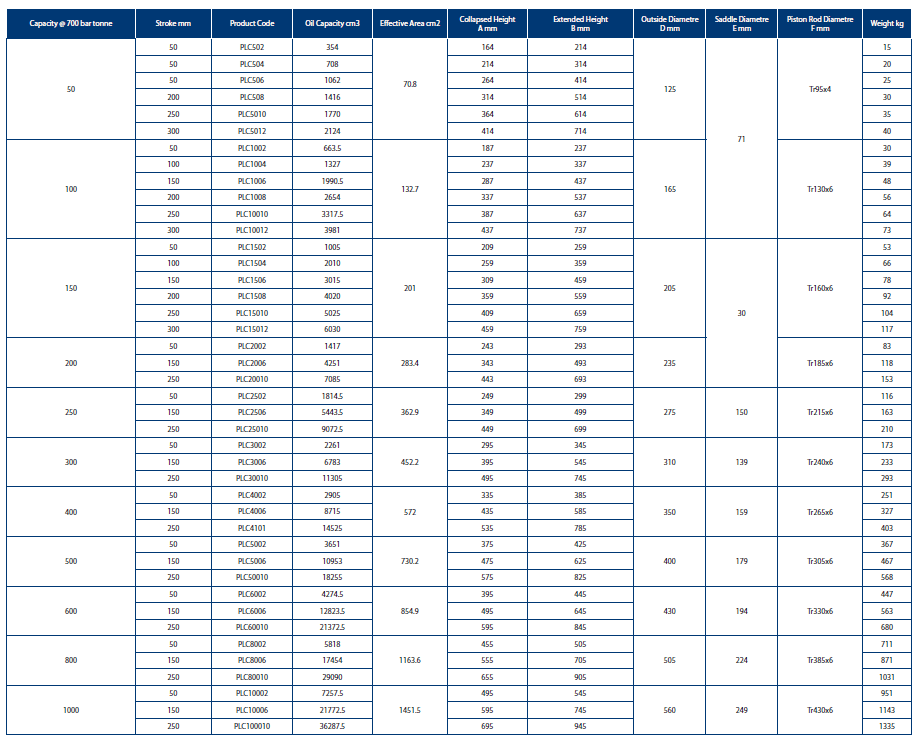

Part Number Description
1001293 Cylinder, Lock Nut 50T 50mm
1001294 Cylinder, Lock Nut 50T 100mm
1001295 Cylinder, Lock Nut 50T 150mm
1001296 Cylinder, Lock Nut 50T 200mm
1001297 Cylinder, Lock Nut 50T 250mm
1001298 Cylinder, Lock Nut 50T 300mm
1001299 Cylinder, Lock Nut 100T 50mm
1001300 Cylinder, Lock Nut 100T 100mm
1001301 Cylinder, Lock Nut 100T 150mm
1001302 Cylinder, Lock Nut 100T 200mm
1001303 Cylinder, Lock Nut 100T 250mm
1001304 Cylinder, Lock Nut 100T 300mm
1001305 Cylinder, Lock Nut 150T 50mm
1001306 Cylinder, Lock Nut 150T 100mm
1001307 Cylinder, Lock Nut 150T 150mm
1001308 Cylinder, Lock Nut 150T 200mm
1001309 Cylinder, Lock Nut 150T 250mm
1001310 Cylinder, Lock Nut 150T 300mm
1001311 Cylinder, Lock Nut 200T 50mm
1001312 Cylinder, Lock Nut 200T 150mm
1001313 Cylinder, Lock Nut 200T 300mm
1001314 Cylinder, Lock Nut 300T 50mm
1001315 Cylinder, Lock Nut 300T 150mm
1001316 Cylinder, Lock Nut 300T 30mm
1001317 Cylinder, Lock Nut 400T 50mm
1001318 Cylinder, Lock Nut 400T 150mm
1001319 Cylinder, Lock Nut 400T 300mm
1001320 Cylinder, Lock Nut 500T 50mm
1001321 Cylinder, Lock Nut 500T 150mm
1001322 Cylinder, Lock Nut 500T 300mm
1001323 Cylinder, Lock Nut 600T 50mm
1001324 Cylinder, Lock Nut 600T 150mm
1001325 Cylinder, Lock Nut 600T 300mm
1001326 Cylinder, Lock Nut 800T 50mm
1001327 Cylinder, Lock Nut 800T 150mm
1001328 Cylinder, Lock Nut 800T 300mm
1001329 Cylinder, Lock Nut 1000T 50mm
1001330 Cylinder, Lock Nut 1000T 150mm
1001331 Cylinder, Lock Nut 1000T 300mm

Features:

  • Safety lock nut for mechanical load holding
  • High flow 3/8-18NPT coupling.
  • Overflow port function as a stroke limiter
  • Environmentally friendly finish that also prevents rust and corros
