Buddy Boy Fluid Recovery Unit

Buddy Boy Fluid Recovery Unit

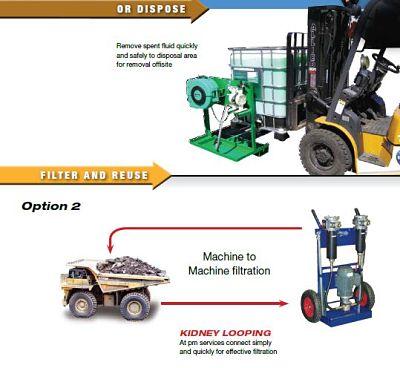

Recover, filter and reuse or dispose , the Buddy Boy makes recovery of spent Fluids easy. Connect to 100 or 200 Series filter unit and save upto 50% on oil usage and disposal costs.

Once Oil is recovered into the Buddy Boy Oil Unit our 100 Series Filtration Unit to clean oil and remove water to ISO cleanliness standards. The pump back into machine for re-use.

Ideal For

  • Recovery of Fluids from machines for FILTERING
  • Recovery of Fluids from machines for clean STORAGE.
  • Recovery of Fluids from machines for DISPOSAL.
Part Number Description
1000601 Buddy Boy Recovery Unit -Oil Inc Bin
1000602 Buddy Boy Recovery Unit -Oil No Bin
1000603 Buddy Boy Recovery Unit -Coolant Inc Bin
1000604 Buddy Boy Recovery Unit -Coolant No Bin

Features:

  • Reduces oil usage by upto 50%.
  • Cuts maintenance costs by 25%
  • Safe guards Equipment Warranties
  • Removes contamination and water in Hydraulic, Fuel & Lubrication Systems to ISO cleanliness standards.
  • Incorporates 3 Micron Absolute Media and 10 Micron Water Removal.
  • Filter "Element Change" Indicators inbuilt on filter housings
  • Inbuilt heaters for maintaing oil viscosity for faster more efficient filtration
  • 28 l/min pressure balance pump.
  • 0.55kw capacitor to start electric motor.

Filtering Performance:

Based on the following Conditions:

a. Initial contamination:500,000 Particles/100ML, 10 Micron or greater

b.40W inlet and 10C outlet filters. (Beta ratio-8/10 eual to 2)

c.Ingression rate equal to 100,000 particles/min, 10 Micron or greater

Related categories:

Buddy Boy Fluid Recovery Brochure

Download buddy-boy-fluid-recovery-unit.pdf
