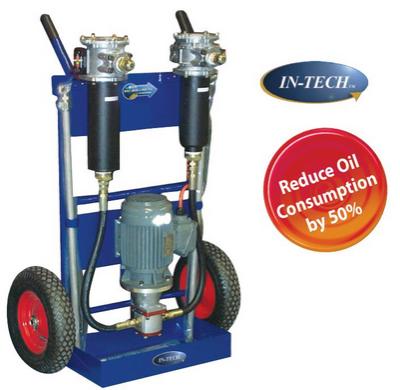

The Intech Portable Filter System is designed for on-site preventive maintenance of fluid systems. Two high capacity filters are used, with fluid passing through a primary clean-up filter (RF2-1) and then through the final filter (CF2-1) giving effective contamination removal.

Ideal for

• Off-line contamination control of fluid systems.
• Replenishing installations with filtered fluid
• Emptying waste fluid quickly

Product Number	Description
1000326	Filtration System 100 Series Bag Trolley, 240VAC/50Hz

Features

• Reduces oil usage by up to 50%
• Cuts Maintenance Costs by 25%
• Safe Guards Equipment Warranties
• Removes contamination and water in Hydraulic, Fuel & Lubrication Systems to ISO cleanliness standards
• Incorporates 3 Micron Absolute Media and 10 Micron Water Removal
• Filter "Element Change" Indicators inbuilt on filter housings
• 28 l/min pressure balanced pump
• 0.55kw capacitor start electric Motor
• Robust heavy duty steel trolley with drip tray and rubber tyre wheels

Filtering Performance

Based on the following conditions:

a) Initial contamination: 500,000 Particles/100 ML, 10 Micron or greater

b) 40W inlet and 10C outlet filters. (Beta ratio-8/10 equal to 2)

c) Ingression rate equal to 100,000 Particles/min, 10 Micron or greater

Clean Up Time to Desired Class

Reservoir Capacity (litres)	Approximate Clean Up Time (Hours) / Desired Cleanliness Class (I.S.O. 4406)
	hrs	class	hrs	class	hrs	class	hrs	class
200	1/2	18/15	1	15/12	2 1/2	14/11	-	-
375	1 1/2	16/13	2 1/2	15/12	4	14/11	-	-
750	2 1/2	17/14	3 1/2	16/13	5	15/12	6 1/2	14/11
1150	3 1/2	17/14	5	16/13	6	15/12	9	14/11

Testimonial

PT Freeport Mine, Indonesia (Largest Gold mine in the world and third largest copper mine)

"By using the filtration units we proved we could save 150,000 litres of oil per year"

Mr Alan Walpole
Haul Truck Maintenance Superintendent

Related categories:

• filtration-systems

Specifications
Pump Drive Options	0.55 kW Electric Motor 240V A.C. single phase 50HZ 0.55 kW Electric Motor 110V A.C. single phase 50HZ
Pump	28 i/min pressure balanced gear pump
Filters	Moduflow CF2.1 & RF2.1 filters
Electrics	On-off switch to IP65 2 metre cable
Weight (Dry)	56 kg
Fluids	Compatible with hydraulic oils, coolant fluids and petroleum based fluids to 108 cSt max with 0.85 S.G. Water glycol and phosphate ester options available

100 Series bag trolley filtration unit

Further information and specifications

Download intech_100_series_bag_trolley_filtration_unit_.pdf
