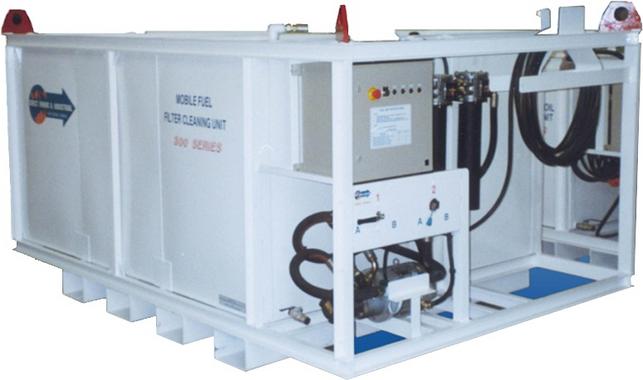

INTECH 300 Series Mobile Filtration Unit

INTECH 300 Series Mobile Filtration Unit

The Intech Portable Filter System is designed for on-site preventive maintenance of fluid systems. Two high capacity filters are used, with fluid passing through a primary clean-up filter (RF2-1) and then through the final filter (CF2-1) giving effective contamination removal.

Ideal for

  • Off-line contamination control of fluid systems.
  • Replenishing installations with filtered fluid
  • Emptying waste fluid quickly
Product Number Description
1000732 Filtration System Tank Unit, Hydraulic

Features

  • Reduces oil usage by up to 50%
  • Cuts maintenance costs by 25%
  • Safeguards equipment warranties
  • Removes contamination and water in Hydraulic, Fuel & Lubrication Systems to ISO cleanliness standards
  • Incorporates 3 micron absolute media and 10 micron water removal
  • Filter "Element Change" Indicators inbuilt on filter housings
  • Inbuilt heaters for maintaining oil viscosity for faster more efficient filtration
  • Fully automatic pump cut-out on low pump prime
  • 28 l/min pressure balanced pump
  • 0.55kw capacitor start electric motor

Filtering Performance

Based on the following conditions:

a) Initial contamination: 500,000 Particles/100 ML, 10 Micron or greater

b) 40W inlet and 10C outlet filters. (Beta ratio-8/10 equal to 2)

c) Ingression rate equal to 100,000 Particles/min, 10 Micron or greater

Clean Up Time to Desired Class

Reservoir Capacity (litres) Approximate Clean Up Time (Hours) / Desired Cleanliness Class (I.S.O. 4406)
hrs class hrs class hrs class hrs class
200 1/2 18/15 1 15/12 2 1/2 14/11 - -
375 1 1/2 16/13 2 1/2 15/12 4 14/11 - -
750 2 1/2 17/14 3 1/2 16/13 5 15/12 6 1/2 14/11
1150 3 1/2 17/14 5 16/13 6 15/12 9 14/11

Testimonial

PT Freeport Mine, Indonesia (Largest Gold mine in the world and third largest copper mine)

"By using the filtration units we proved we could save 150,000 litres of oil per year"

Mr Alan Walpole
Haul Truck Maintenance Superintendent

Related categories:

Specifications
Pump Drive Options 0.55 kW Electric Motor 240V A.C. single phase 50HZ
0.55 kW Electric Motor 110V A.C. single phase 50HZ
Pump 28 i/min pressure balanced gear pump
Filters

Moduflow CF2.1 & RF2.1 filters
Heaters 240 / 415V, 6kW

Heaters 240 / 415V, 6kW
Electrics On-off switch to IP65
2 metre cable
Fluids Compatible with hydraulic oils, coolant fluids and petroleum based fluids to 108 cSt max with 0.85 S.G.
Water glycol and phosphate ester options available

INTECH 300 Series Mobile Filtration Unit Brochure

Download intech-300-series-filtration-unit-.pdf
