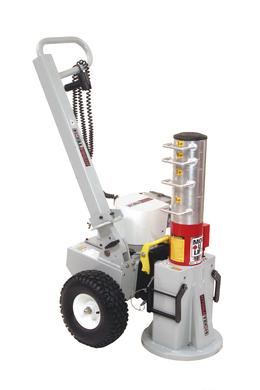

The modular design of the MOD-U-LIFT allows the Pump Module to be separated from the Lift Modular providing more versatility.

Part Number	Description
1000619	Lift Module, 100T, 16" Stroke
1000620	Lift Module, 100T, 18" Stroke
1000626	Power Module, 60-100 Tonne - Air
1000628	Power Module, 60-100 Tonne - Electric

Features:

• Air or electric driven Hydraulic pump modules
• With load holding rings , the lift module mechanically supports up to 2 ½ times its rated capacity
• Extensions are available to extend the effective extended height of the lift module to an additional 20"
• Swivel saddle reduces the adverse effects of angled jacking surfaces up to 5°
• Lift module may be used in horizontal position to "push"

Related categories:

• lifting-equipment

SIZING CHART

Tonnage	Stroke		Closed Height		Extend Height		4"(101mm) Base Ext		4" (101mm) Ext + 4"		8'(203mm) Ext + 4"		16"(406mm) Ext + 4"
			A	A	B	B	C	C	D	D	E	E	F	F
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
100	13	330	23	584	36	914	40	1,016	44	1,118	48	1,219	56	1,422
100	16	405	27	680	43	1,085	47	1,194	51	1,295	55	1,397	63	1,600
100	18	455	29	730	47	1,185	51	1,295	55	1,397	59	1,499	67	1,701

Tonnage	Stroke	A	B	C	D	E	F	G	Approx Weight
100	18"/455mm	730	915	711	1115	438	635	394	570lbs/258kg
100	24"/610mm	832	915	711	1115	438	635	394	615lbs/278kg

• Lift Module Transporter, works with all sizes of Lift modules
• Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Mandatory with extension
• Load Holding rings provide mechanical support
• Lightweight aluminium extension adaptors in standard heights. Large diameter interlocking segments for added strength

Part Number	Description
1000646	Load Saddle, 100T
1000648	Swivel Saddle, 100T
1000668	Load Holding Ring Set 16" Stroke
1000669	Load Holding Ring Set 18" Stroke
1000665	Load Holding Ring, 100T - 2"
1000666	Load Holding Ring, 100T - 3"
1000667	Load Holding Rings,100T - 5"
1000680	Extension, Steel Base 100T*
1000681	Extension Adaptor 100 Tonne - 4"
1000682	Extension Adaptor 100 Tonne - 8"
1000683	Extension Adaptor 100 Tonne - 16"
1000657	Front Sus Adaptor/100T
* Required when using extensions.
