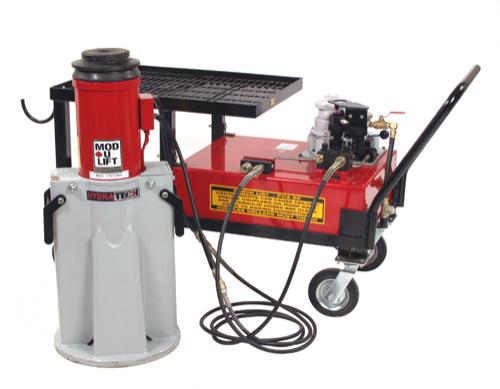

The Pump Cart version, an economical alternative when you require more than one lifting unit. It has oil capacity to pump 4 x Lift Modules as well as provide 10,000 psi pressure for other hydraulic tools. A convenient way to carry your hydraulic tools while providing hydraulic power to operate them.

Part Number	Description
1000621	Lift Module, 175T, 13" Stroke
1000622	Lift Module, 175T, 15" Stroke
1000634	Pump Cart, Air
1000635	Pump Cart, Air - Shop Model
1000636	Pump Cart, Air - Rough Terrain

Features:

• Air or electric driven 10,000 psi Hydraulic pump modules
• Hydraulic Splitter Manifold allows one or two jacks to be operate simultaneously.
• Large Hydraulics reservoir to power multiple jacks - upto four (4) 175 ton lift modules or six ( 6 ) 100 ton lift modules.
• Very economical alternative to purchasing a unitized pump and lift module capacity when you require more than one lifing unit.
• Large built in storage racks to store jack accessories and hoses.
• Available with easy rolling standard wheels or in a rough terrain version with large, low rolling resistance tyres.
• A versatile and convenient way to provide hydraulic power to "other" 10,000 psi tools (either single or double acting tools.)
• Cart provides a convenient way to carry your tools while providing power to opearte them.
• Custom rackets and cabinets are available for unique applications.

Related categories:

• lifting-equipment

SIZING CHART

Tonnage	Stroke		Closed Height		Extend Height		4"(101mm) Base Ext		4" (101mm) Ext + 4"		8'(203mm) Ext + 4"		16"(406mm) Ext + 4"
			A	A	B	B	C	C	D	D	E	E	F	F
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
175	13	330	30	760	43	1,090	47	1,194	51	1,295	55	1,397	63	1,600
175	15	380	32	810	47	1,190	51	1,295	55	1,397	59	1,499	67	1,702
175	17	430	34	860	51	1,290	55	1,397	59	1,499	63	1,600	71	1,803
175	24	610	41	1,040	65	1,650	69	1,753	73	1,854	77	1,956	85	2,159

Tonnage	Stroke	A	B	C	D	E	F	G	Approx Weight
175	13"/330mm	762	915	711	1063	438	635	457	910lbs/412kg
175	15"/380mm	813	1048	781	1261	521	719	457	1000lbs/453kg
175	17"/430mm	864	1048	781	1261	521	719	457	1050lbs/476kg
175	24"/610mm	1041	1048	781	1261	521	719	457	1225lbs/555kg

• Lift Module Transporter, works with all sizes of Lift modules
• Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Mandatory with extension
• Load Holding rings provide mechanical support
• Lightweight aluminium extension adaptors in standard heights. Large diameter interlocking segments for added strength

Part Number	Description
1000612	Bulldog 120-175T Jack Manipulation Cart
1000650	Swivel Saddle, 175 Tonne
1000654	Rear Sus Adaptor K-830E/120 Tonne
1000655	Rear Sus Adaptor K-830E/175 Tonne
1000656	Rear Sus Adaptor K-930E/175 Tonne
1000658	Front Sus Adaptor 120/175 Tonne
1000670	Load Holding Ring 175T -2"
1000671	Load Holding Ring 175T -3"
1000672	Load Holding Ring 175T -5"
1000673	Load Holding Ring Set 175T -13" Stroke
1000674	Load Holding Ring Set 175T -17" Stroke
1000675	Load Holding Ring Set 175T -24" Stroke
1000688	Extension, Steel Base 175"
1000689	Extension Adapter 175 Tonne 4+4" Aluminium
1000690	Extension Adapter 175 Tonne 4+8" Aluminium
1000691	Extension Adapter 175 Tonne 4+16" Aluminium
* Required when using extensions.
