MEGAModulift 60 Tonne

MEGAModulift 60 Tonne

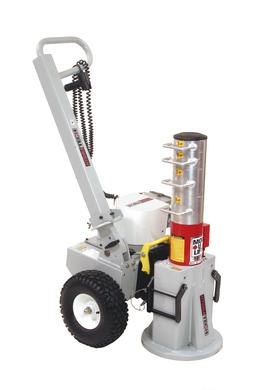

The modular design of the MOD-U-LIFT allows the Pump Module to be separated from the Lift Modular providing more versatility.

Part Number Description
1000616 Lift Module, 60T, 13" Stroke
1000617 Lift Module, 60T, 16" Stroke
1000618 Lift Module, 60T, 16" Stroke - Low Pressure
1000626 Power Module, 60-100 Tonne - Air
1000628 Power Module, 60-100 Tonne - Electric

Features:

  • Air or electric driven Hydraulic pump modules
  • With load holding rings , the lift module mechanically supports up to 2 ½ times its rated capacity
  • Extensions are available to extend the effective extended height of the lift module to an additional 20"
  • Swivel saddle reduces the adverse effects of angled jacking surfaces up to 5°
  • Lift module may be used in horizontal position to "push"

Related categories:

  • Lift Module Transporter, works with all sizes of Lift modules
  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Mandatory with extension
  • Load Holding rings provide mechanical support
  • Lightweight aluminium extension adaptors in standard heights. Large diameter interlocking segments for added strength
Part Number Description
1000645 Load Saddle, 60 Tonne
1000647 Swivel Saddle, 60 Tonne
1000659 Load Holding Ring 60T - 2"
1000660 Load Holding Ring 60T - 3"
1000661 Load Holding Ring 60T - 5"
1000662 Load Holding Ring Set 13" Stroke
1000663 Load Holding Ring Set 16" Stroke
1000664 Load Holding Ring Set 24" Stroke
1000676 Extension, Steel Base 60T*
1000677 Extension Adaptor 60 Tonne - 4"
1000678 Extension Adaptor 60 Tonne - 8"
1000679 Extension Adaptor 60 Tonne - 1
* Required when using extensions.
