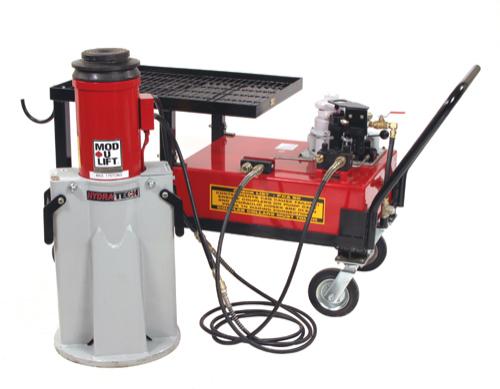

The Pump Cart version, an economical alternative when you require more than one lifting unit. It has oil capacity to pump 4 x Lift Modules as well as provide 10,000 psi pressure for other hydraulic tools. A convenient way to carry your hydraulic tools while providing hydraulic power to operate them.

Part Number	Description
1000616	Lift Module, 60T, 13" Stroke
1000617	Lift Module, 60T, 16" Stroke
1000618	Lift Module, 60T, 16" Stroke - Low Pressure
1000635	Pump Cart, Air - Shop Model
1000636	Pump Cart, Air - Rough Terrain

Features:

• Air or electric driven 10,000 psi Hydraulic pump modules
• Hydraulic Splitter Manifold allows one or two jacks to be operate simultaneously.
• Large Hydraulics reservoir to power multiple jacks - upto four (4) 175 ton lift modules or six ( 6 ) 100 ton lift modules.
• Very economical alternative to purchasing a unitized pump and lift module capacity when you require more than one lifing unit.
• Large built in storage racks to store jack accessories and hoses.
• Available with easy rolling standard wheels or in a rough terrain version with large, low rolling resistance tyres.
• A versatile and convenient way to provide hydraulic power to "other" 10,000 psi tools (either single or double acting tools.)
• Cart provides a convenient way to carry your tools while providing power to opearte them.
• Custom rackets and cabinets are available for unique applications.

Related categories:

• lifting-equipment

SIZING CHART

Tonnage	Stroke		Closed Height		Extend Height		4"(101mm) Base Ext		4" (101mm) Ext + 4"		8'(203mm) Ext + 4"		16"(406mm) Ext + 4"
			A	A	B	B	C	C	D	D	E	E	F	F
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
60	13	330	21	530	34	860	38	965	42	1,067	46	1,168	54	1,372
60	16	405	24	610	40	1,015	44	1,118	48	1,219	52	1,321	60	1,524
60	18	455	26	660	44	1,115	48	1,219	52	1,321	56	1,422	64	1,626

Tonnage	Stroke	A	B	C	D	E	F	G	Approx Weight
60	13"/330mm	535	905	711	1089	438	635	394	430lbs/195kg
60	16"/405mm	635	905	711	1089	438	635	394	434lbs/196kg
60	18"/455mm	788	905	711	1089	438	635	394	450lbs/204kg

• Lift Module Transporter, works with all sizes of Lift modules
• Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Mandatory with extension
• Load Holding rings provide mechanical support
• Lightweight aluminium extension adaptors in standard heights. Large diameter interlocking segments for added strength

Part Number	Description
1000651	Bulldog 60 & 100T Jack Manipulation Cart
1000645	Load Saddle, 60 Tonne
1000647	Swivel Saddle, 60 Tonne
1000659	Load Holding Ring 60T - 2"
1000660	Load Holding Ring 60T - 3"
1000661	Load Holding Ring 60T - 5"
1000662	Load Holding Ring Set 13" Stroke
1000663	Load Holding Ring Set 16" Stroke
1000664	Load Holding Ring Set 24" Stroke
1000676	Extension, Steel Base 60T*
1000677	Extension Adaptor 60 Tonne - 4"
1000678	Extension Adaptor 60 Tonne - 8"
1000679	Extension Adaptor 60 Tonne - 1
* Required when using extensions.
