Modulift Portable Aluminium Jack 90 Tonne

Modulift Portable Aluminium Jack 90 Tonne

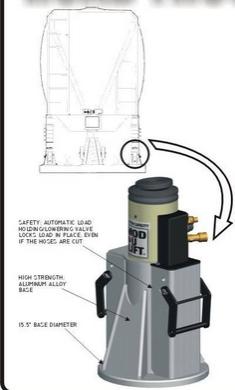

Safety and versatility are the key features of the of the MODULIFT Aluminium jack.

Part Number Description
1000832 Lift Module, 90 Tonne 16" Stroke Aluminium
1000632 Portable Pump, Electric
1000633 Portable Pump, Electric with manifold

Features:

  • 16" /40cm stroke
  • 28"71cm Retracted Height
  • Upto 10"/101 retracted height using extensions & holding rings
  • 155lb / 70 kg without saddle
  • Flexible - can be used was a wheel hack with Modu-lift Pump.
  • 110 volt electric/hydraulic plugs into any welder.
  • High strength Aluminium Alloy Base
  • 15.5" Base Diameter

Related categories:

SIZING CHART IB Image IB Image IB Image IB Image IB Image IB Image
Tonnage Stroke Closed Height Extend Height 4"(101mm) Base Ext 4" (101mm) Ext + 4" 8'(203mm) Ext + 4" 16"(406mm) Ext + 4"
A A B B C C D D E E F F
in. mm in. mm in. mm in. mm in. mm in. mm in. mm
90 16 406 27 1/2 698 43.5 1104 31 5/8 803 35 5/8 904 39 5/8 1,006 47 5/8 1,209

IB Image

Part Number Description
1000668 Load Holding Ring set 90/100 16" Stroke
1000665 Load Holding Ring 90/100 - 2"
1000666 Load Holding Ring 90/100 - 3"
1000667 Load Holding Ring 90/100 - 5"
1000680 Extension, Steel Base 90/100T"
1000648 Swivel Saddle, 90/100
1000681 Extension Adaptor 90/100 Tonne - 4"
1000682 Extension Adaptor 90/100 Tonne - 8"
1000683 Extension Adaptor 90/100 Tonne - 16"
* Required when using extensions.

Modulift Portable Aluminium Jack 90 Tonne Brochure

Download modulift-90-tonne-portable-aluminium-jack-brochure.pdf
