SUPAJack 100 Tonne

SUPAJack 100 Tonne

Product Number

Description

100641

SupaJack 100T 16" Stroke - Electric

100642

SupaJack 100T 16" Stroke - Air

100643

SupaJack 100T 18" Stroke - Electric

100644

SupaJack 100T 18" Stroke - Air

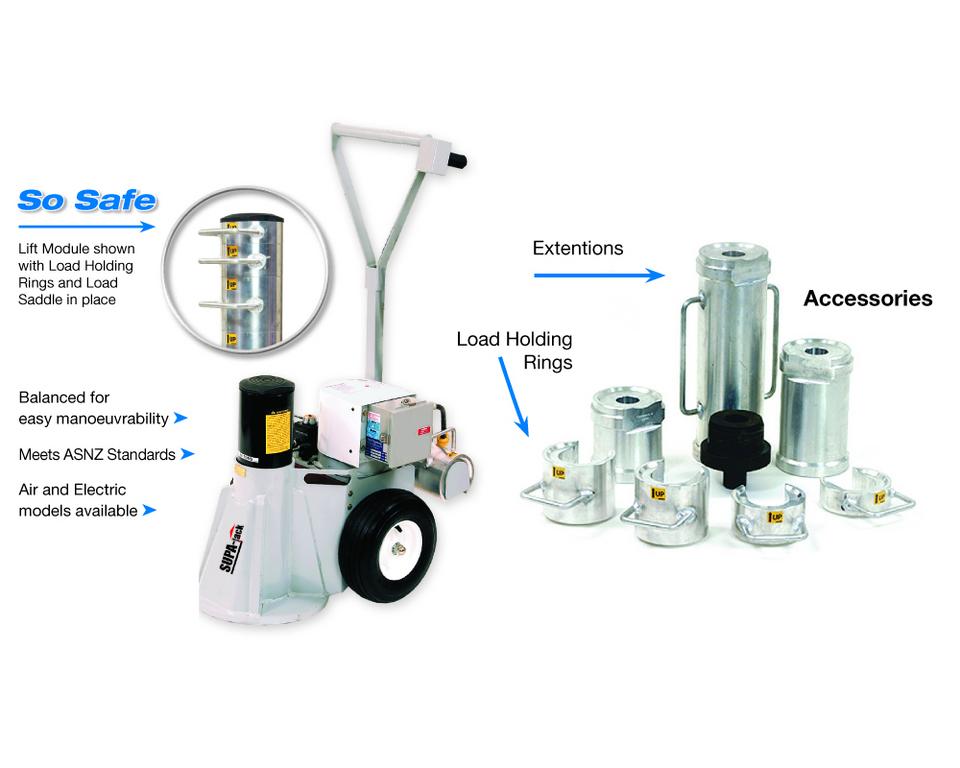

Features:

  • 100 Ton capacity air or electric driven 10,000 psi hydraulic pump.
  • Balanced for easy Manoeuvrability
  • Meets ASNZ Standards
  • Electric model shown
  • Pneumatic Tyres
  • Solid steel frame
  • Aluminium Load Holding rings & extensions stored on Jack
  • With load holding rings the jack can support up to 2.5 times its rated capacity
  • Extensions are available to increase the effective extended height of the unit up to an additional 20".
  • Optional swivel saddle reduces the adverse effects of angled jacking surfaces up to 5°

Related categories:

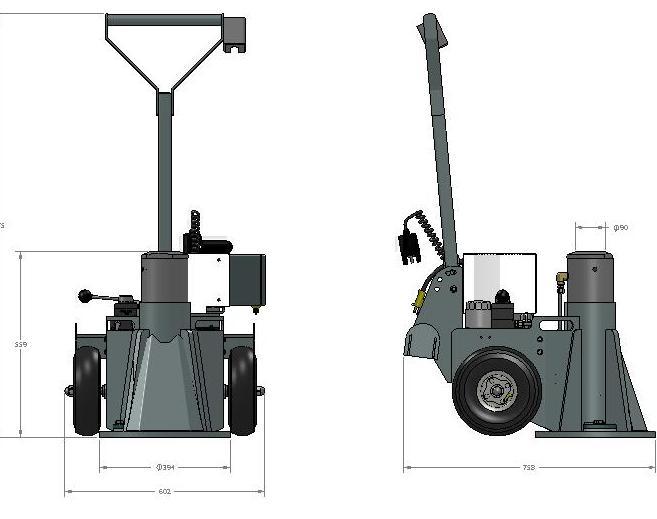

SIZING CHART IB Image IB Image IB Image IB Image IB Image IB Image
Tonnage Stroke Closed Height Extend Height 4"(101mm) Base Ext 4" (101mm) Ext + 4" 8'(203mm) Ext + 4" 16"(406mm) Ext + 4"
A A B B C C D D E E F F
in. mm in. mm in. mm in. mm in. mm in. mm in. mm
100 16 405 27 680 43 1,085 47 1,194 51 1,295 55 1,397 63 1,600
100 18 455 29 730 47 1,185 51 1295 55 1,397 59 1499 67 1,702
100 22 560 47 1,190 69 1,750 73 1854 77 1,956 81 2057 89 2,261
100 28 710 39 985 67 1,695 71 1803 75 1,905 79 2007 87 2,210
Tonnage Stroke A (inches) A (mm) Approx Weight
40 13"/330mm 21 7/8 556 405lbs/183kg

IB Image

Product Number

Description
100646

Load Saddle 100T
100648

Swivel Saddle 100T
100668

Load Holding Ring Set 100T 16"Stroke
100669

Load Holding Ring Set 100T 18"Stroke
100665

Load Holding Ring Set, 100T 2"
100666

Load Holding Ring Set, 100T 3"
1000667

Load Holding Ring Set, 100T 5"
1000680

Extension Steel Base, 100T"
1000681

Extension Adaptor 100 Tonne -4"
1000682

Extension Adaptor 100 Tonne -8"

1000683

Extension Adaptor 100 Tonne -16"
1000657

Front Sus Adaptor/100T

*Required when using extensions

IB Image
