SUPAJack 60 Tonne

SUPAJack 60 Tonne
Product Number Description
1000637 Supajack 60T 13" Stroke - Electric
1000638 Supajack 60T 13" Stroke - Air
1000639 Supajack 60T 16" Stroke - Electric
1000640 Supajack 60T 16" Stroke - Air

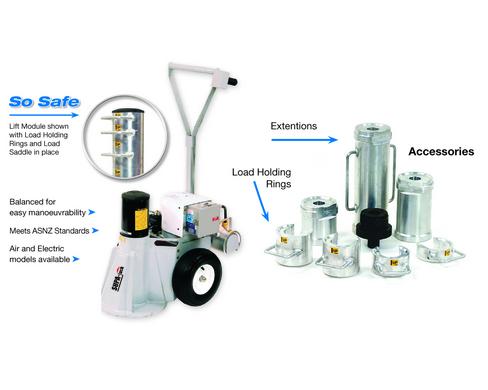

Features:

  • 60 Ton capacity air or electric driven 10,000 psi hydraulic pump.
  • Balanced for easy Manoeuvrability
  • Meets ASNZ Standards
  • Air and Electric models available
  • Pneumatic Tyres
  • Solid steel frame
  • Aluminium Load Holding rings & extensions stored on Jack
  • With load holding rings the jack can support upto 2.5 times its rated capacity
  • Extensions are available to increase the effective extended height of the unit up to an additional 20".
  • Optional swivel saddle reduces the adverse effects of angled jacking surfaces up to 5°

Related categories:

SIZING CHART IB Image IB Image IB Image IB Image IB Image IB Image
Tonnage Stroke Closed Height Extend Height 4"(101mm) Base Ext 4" (101mm) Ext + 4" 8'(203mm) Ext + 4" 16"(406mm) Ext + 4"
A A B B C C D D E E F F
in. mm in. mm in. mm in. mm in. mm in. mm in. mm
60 13 330 22 555 35 885 39 991 43 1,092 47 1,194 55 1,397
60 16 405 25 630 41 1,035 45 1,143 49 1,245 53 1,346 61 1,549
Tonnage Stroke A (inches) A (mm) Approx Weight
60 13"/330mm 21 7/8 556 405lbs/183kg
60 16"/405mm 24 7/8 632 447lbs/202kg

IB Image

Product Number

Description
1000645

Load Saddle, 60Tonne
1000647

Swivel Saddle, 60 Tonne
1000662

Load Holding Ring Set 13" Stroke
1000663

Load Holding Ring Set 16" Stroke
1000664

Load Holding Ring Set 24" Stroke
1000659

Load Holding Ring 60T - 2"
1000660

Load Holding Ring 60T - 3"
1000661

Load Holding Ring 60T - 5"
1000676

Extension, Steel Base 60T"
1000677

Extension Adaptor 60 Tonne -4"
1000678

Extension Adaptor 60 Tonne -8"
1000679

Extension Adaptor 60 Tonne -16"

*Required when using extensions
