Pumps, belly pans, transmission - remove them all safely with the SUPALift Component Handler. Capable of lifting loads up 2.5 tonne with its unique ratchet safety system securing the load at every position.

Part Number Description
1000776 SUPA-LIFT Component Handler 2.5 Tonne


  • Assists in the safe removal and installation of components (belly pans, transmissions, tanks, hydraulic pumps etc)

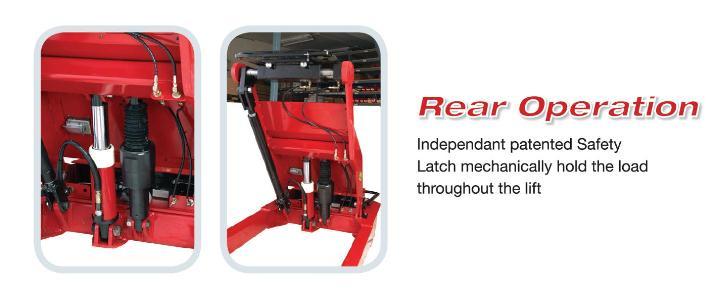

  • Independent patented Safety Latch mechanically holds the load throughout the lift
  • Constructed using QT100 steel plate, ideal for situations where both light weight and high strength are required.
  • Easy to operate
  • No power required
  • Moveable by hand
  • Ratchet locking safety device at each stage up or down
  • 2.5 tonne capacity (5000 lb)

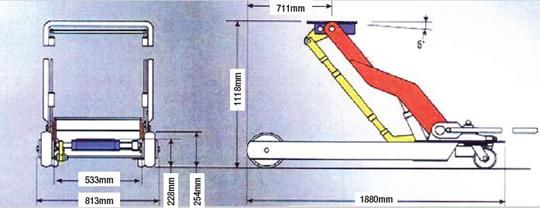

  • 254mm Low Height (10")
  • Head tilt +/- 5o and move 50mm (2") from centre in either direction
  • Various adaptors available

Related categories:

IB Image

Custom adaptors are available for multiple applications.

Product Number Description
1001012 Swivel base adaptor to suit Component Handler SUPALift 2.5
1001011 Hydraulic Pump Removal Adaptor to suit Component Handler SUPALift 2.5
TBA Tri-link adaptor

Hydraulic Pump Removal Adaptor

IB Image

The Pump Removal Adapter bolts to the saddle on the SUPALift. The height of this unit adds 32-1/4" to the existing 48" height of the SUPALift. The centre rollers can be raised to allow the unit being removed/installed, to be rotated in position.

Typical uses:

  • Pump removal/installation
  • Cylinder removal/installation
  • Steering rod removal/installation

Tri-link Adaptor

IB Image

The tri-link adaptor cradle assists in the removal and replacement of the tri-link on the Caterpillar 797 truck. Direct Mining & Industrial can manufacture custom cradles to suit your requirements.

Swivel Base Adaptor Attachment

IB Image

The swivel base adaptor is designed for use in conjunction with other adaptors to enhance functionality. An example would be the hydraulic pump adaptor. The swivel combined with the hydraulic pump adaptor would give you the following conditions: swivel the adaptor 360 degrees in addition to the 4 inch side shift, 5 degree tilt, and the ability to rotate the pump.

SUPALift 2.5 Component Handler Brochure

Download supalift-2.5-component-handler-brochure.pdf
