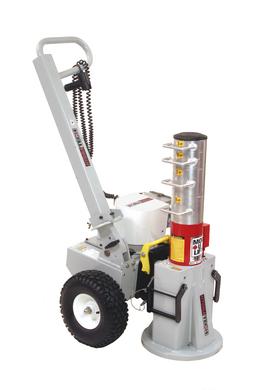

The modular design of the MOD-U-LIFT allows the Pump Module to be separated from the Lift Modular providing more versatility.

Part Number	Description
1000621	Lift Module, 175T, 13" Stroke
1000622	Lift Module, 175T, 15" Stroke
1000623	Lift Module, 175T, 17" Stroke
1000624	Lift Module, 175T, 24" Stroke
1000631	Power Module, 175 Tonne - Air

Features:

• Air or electric driven Hydraulic pump modules
• With load holding rings , the lift module mechanically supports up to 2 ½ times its rated capacity
• Extensions are available to extend the effective extended height of the lift module to an additional 20"
• Swivel saddle reduces the adverse effects of angled jacking surfaces up to 5°
• Lift module may be used in horizontal position to "push"

Related categories:

• lifting-equipment

SIZING CHART

Tonnage	Stroke		Closed Height		Extend Height		4"(101mm) Base Ext		4" (101mm) Ext + 4"		8'(203mm) Ext + 4"		16"(406mm) Ext + 4"
			A	A	B	B	C	C	D	D	E	E	F	F
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
175	13	330	30	760	43	1,090	47	1,194	51	1,295	55	1,397	63	1,600
175	15	380	32	810	47	1,190	51	1,295	55	1,397	59	1,499	67	1,702
175	17	430	34	860	51	1,290	55	1,397	59	1,499	63	1,600	71	1,803
175	24	610	41	1,040	65	1,650	69	1,753	73	1,854	77	1,956	85	2,159

Tonnage	Stroke	A	B	C	D	E	F	G	Approx Weight
175	13"/330mm	762	915	711	1063	438	635	457	910lbs/412kg
175	15"/380mm	813	1048	781	1261	521	719	457	1000lbs/453kg
175	17"/430mm	864	1048	781	1261	521	719	457	1050lbs/476kg
175	24"/610mm	1041	1048	781	1261	521	719	457	1225lbs/555kg

• Lift Module Transporter, works with all sizes of Lift modules
• Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Mandatory with extension
• Load Holding rings provide mechanical support
• Lightweight aluminium extension adaptors in standard heights. Large diameter interlocking segments for added strength

Part Number	Description
1000650	Swivel Saddle, 175T
1000673	Load Holding Ring Set 13" Stroke
1000674	Load Holding Ring Set 17" Stroke
1000675	Load Holding Ring Set 24" Stroke
1000670	Load Holding Ring, 175T - 2"
1000671	Load Holding Rings,175T - 3"
1000672	Load Holding Rings,175T - 5"
1000688	Extension Steel Base 175T"
1000689	Extension Adaptor 175 Tonne - 4+4" Aluminium
1000690	Extension Adaptor 175 Tonne - 4+8" Aluminium
1000691	Extension Adaptor 175 Tonne - 4+16" Aluminium
1000654	Rear Sus Adaptor K-830E/120 Tonne
1000655	Rear Sus Adaptor K-830E/175 Tonne
1000656	Rear Sus Adaptor K-930E/175 Tonne
1000658	Front Sus Adaptor 120/175 Tonne
* Required when using extensions.
